PHOENIX manufactures a high quality zone-type constant watt heating cable using materials, processes and techniques which have been developed, tested and proven effective over time.









http://phoenixheattech.com/images/ConstantWatt.jpg

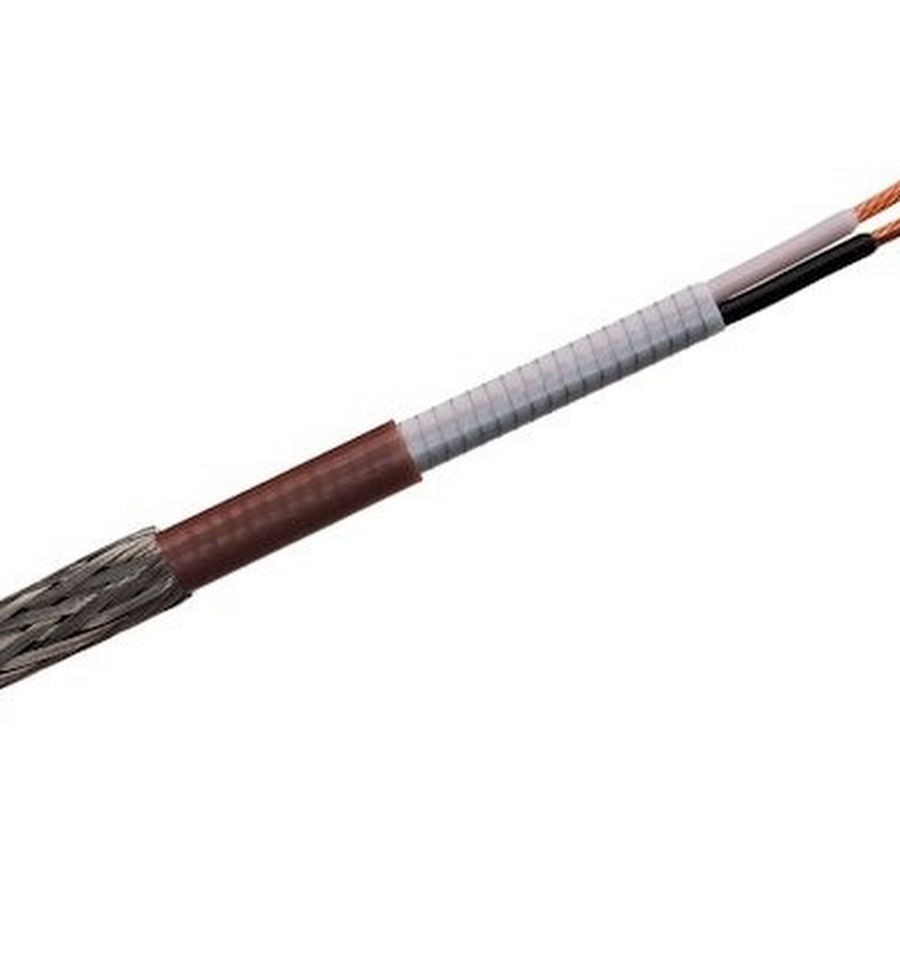

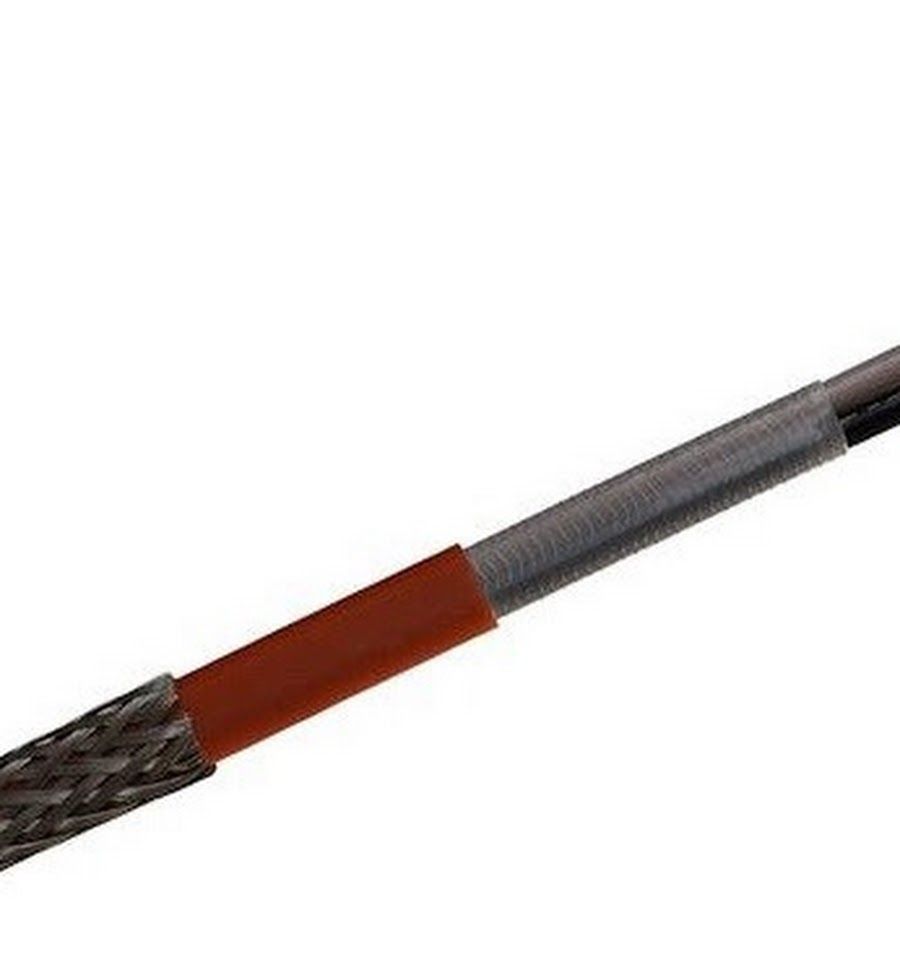

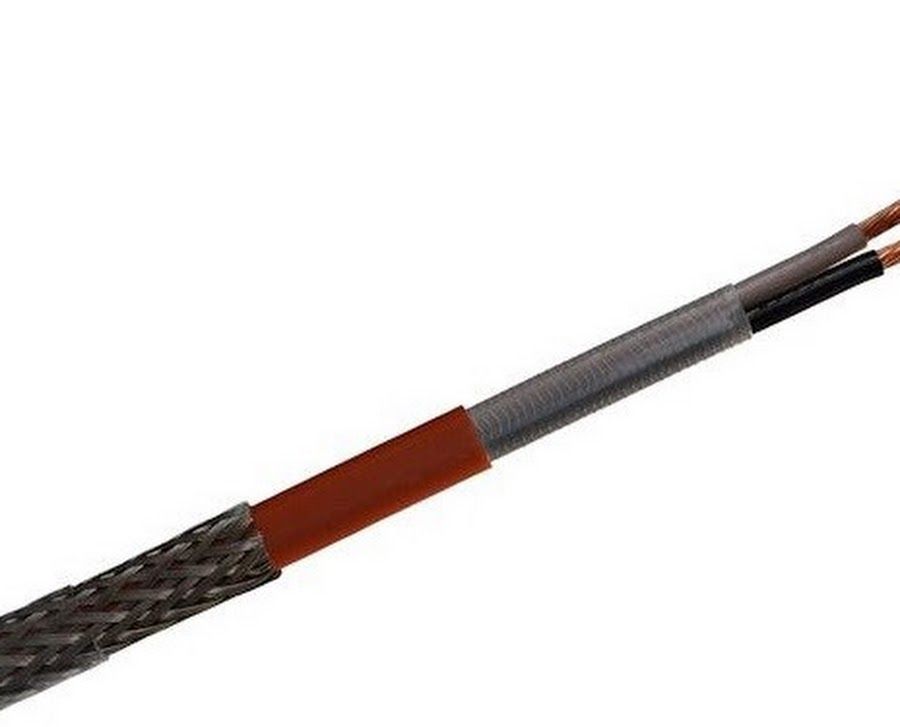

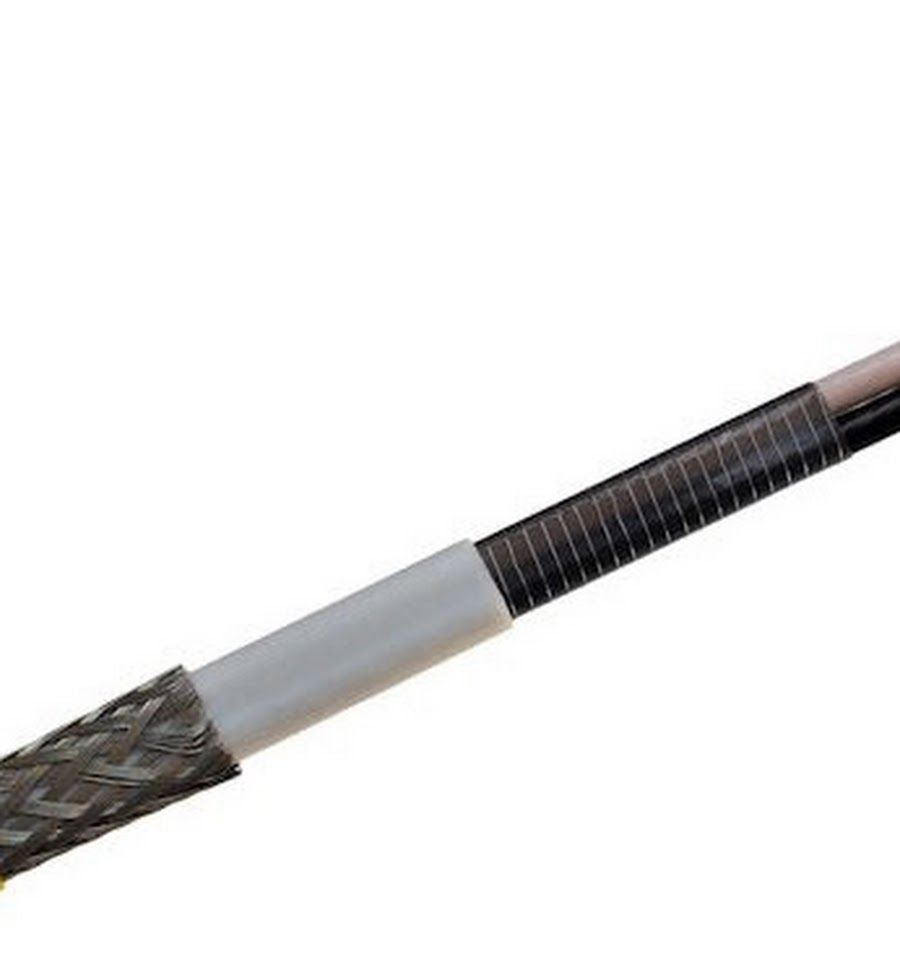

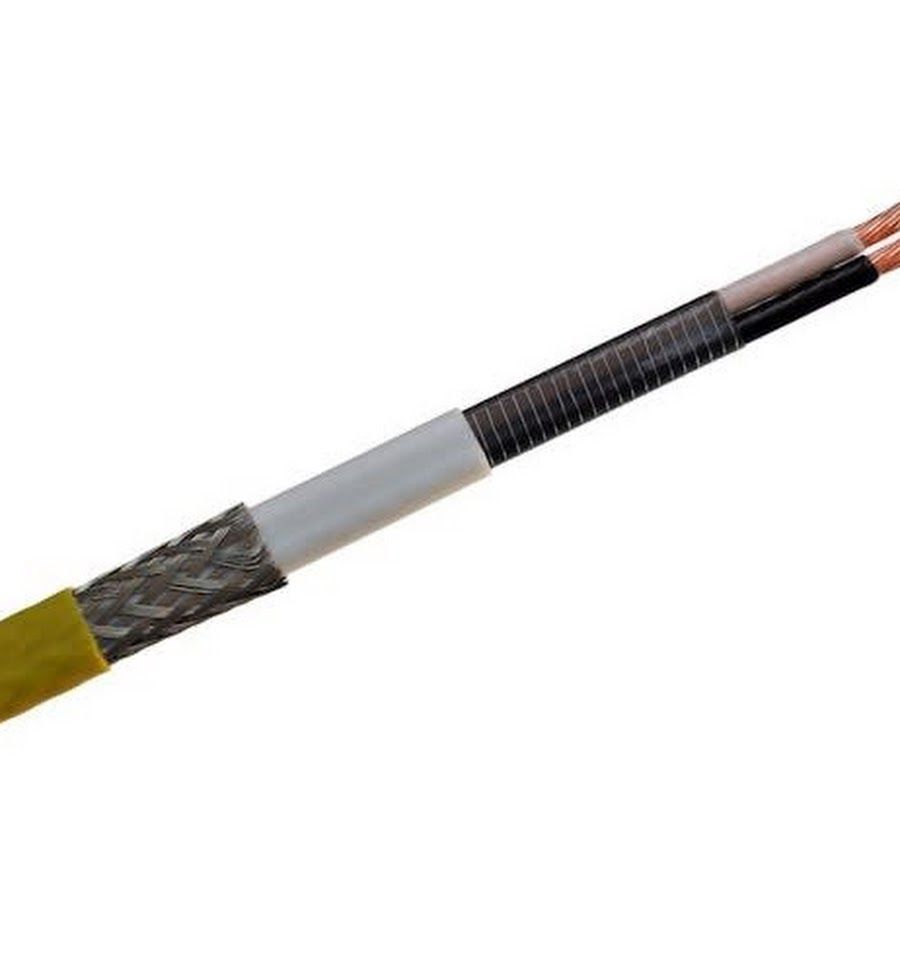

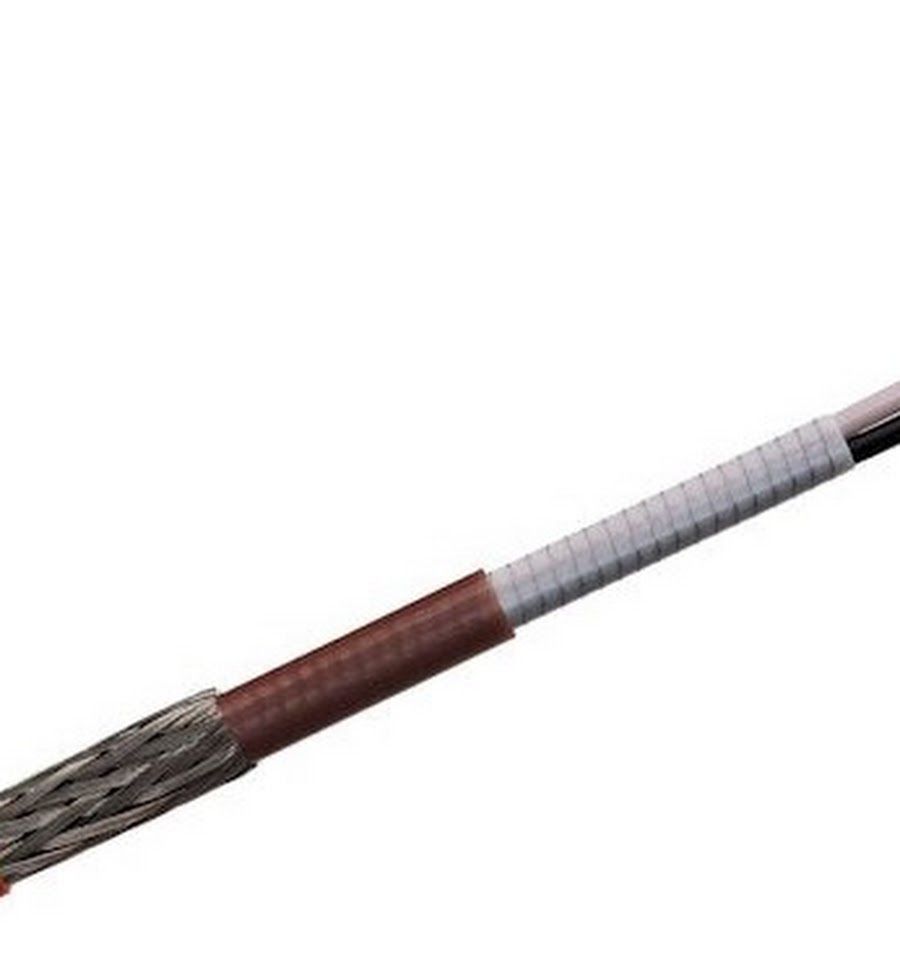

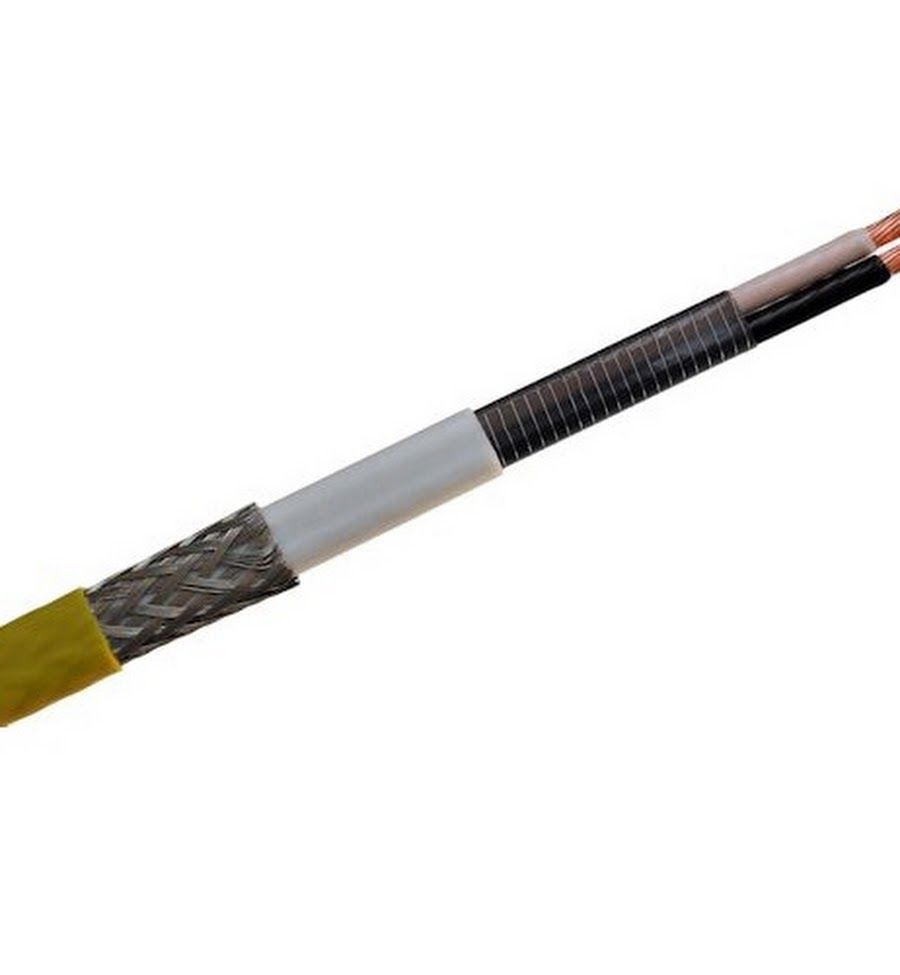

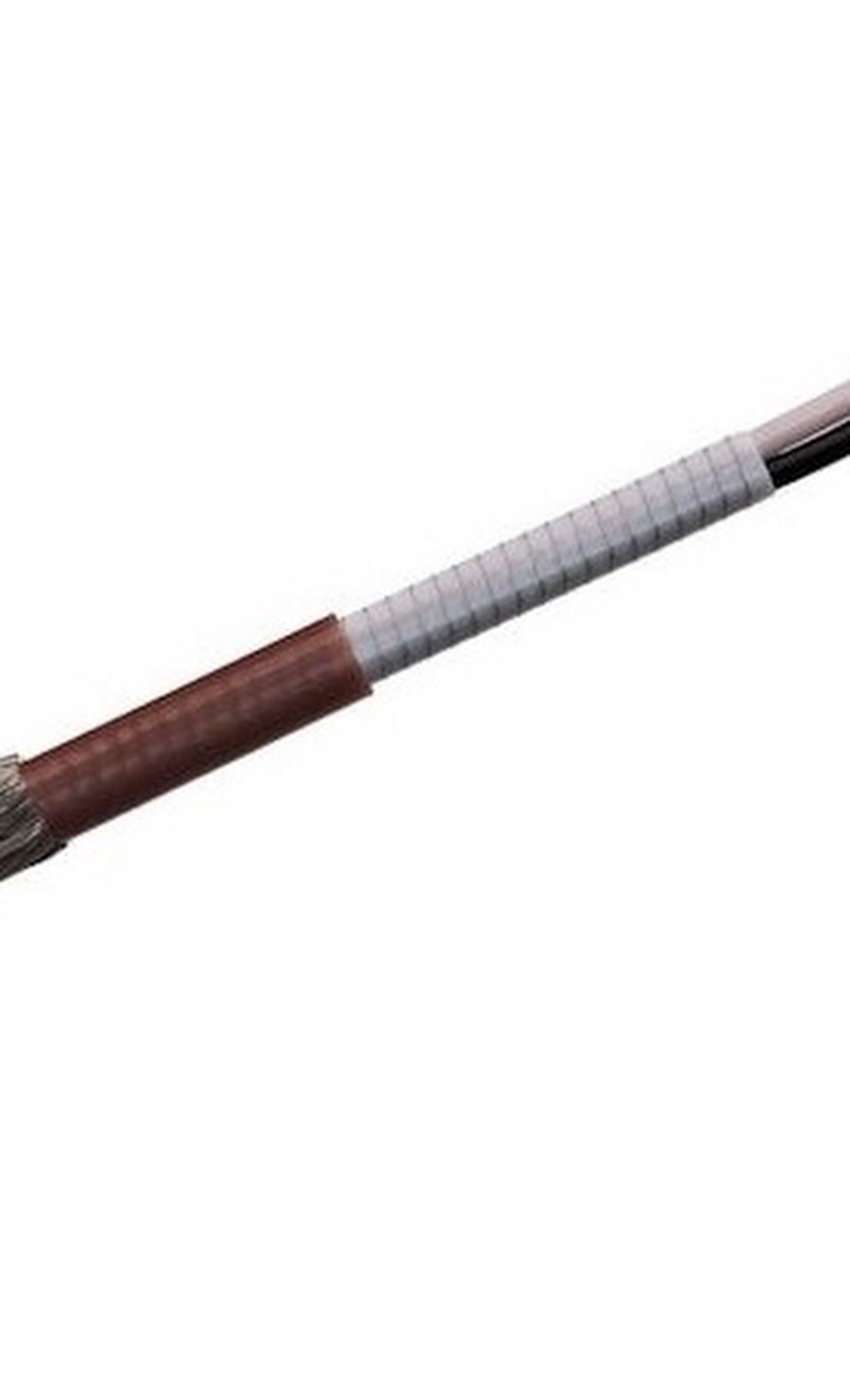

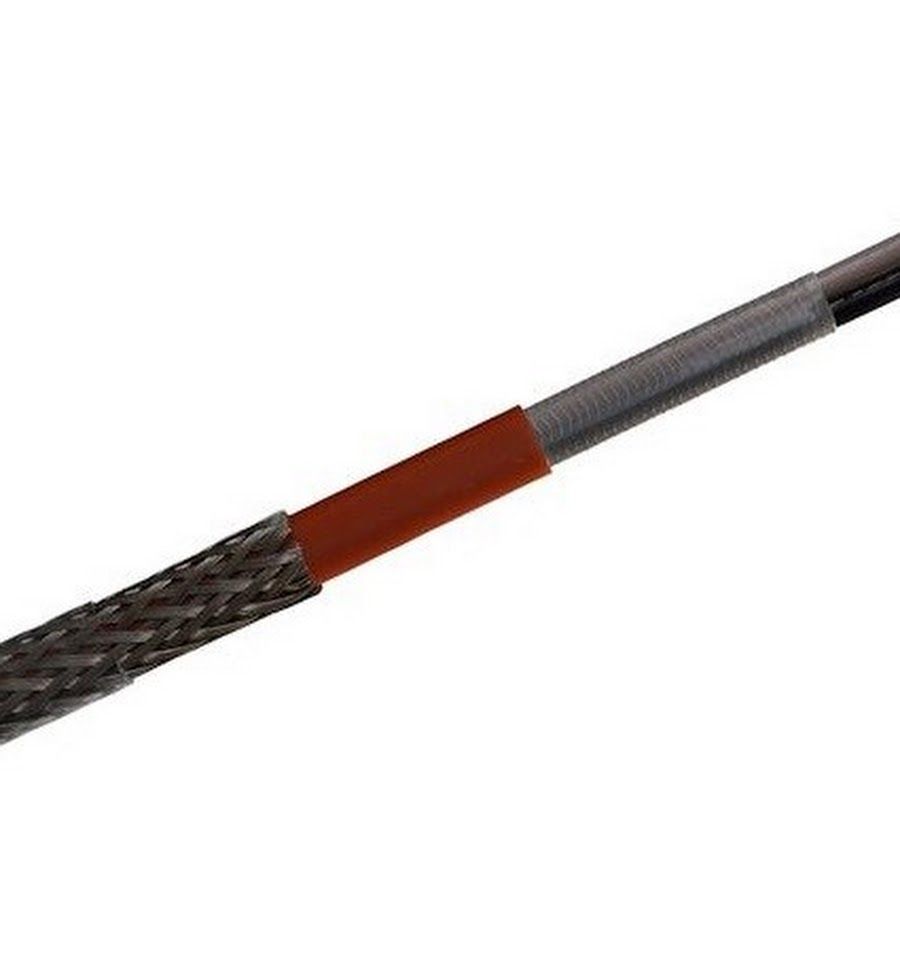

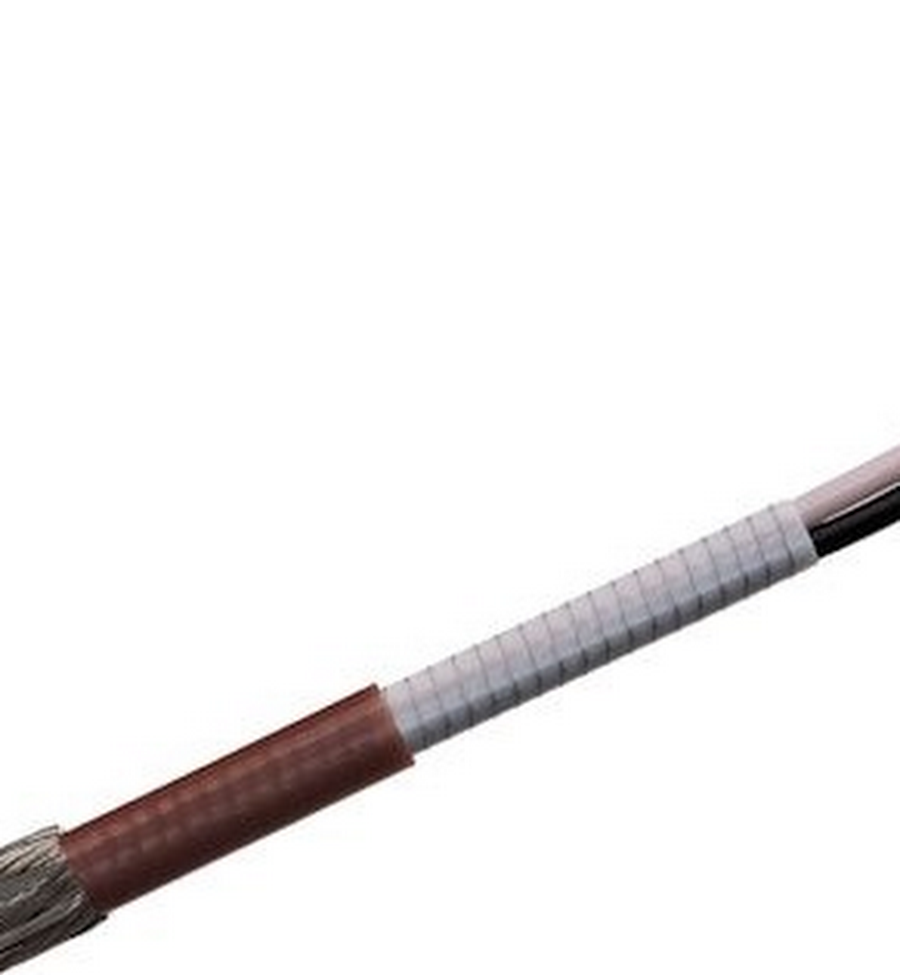

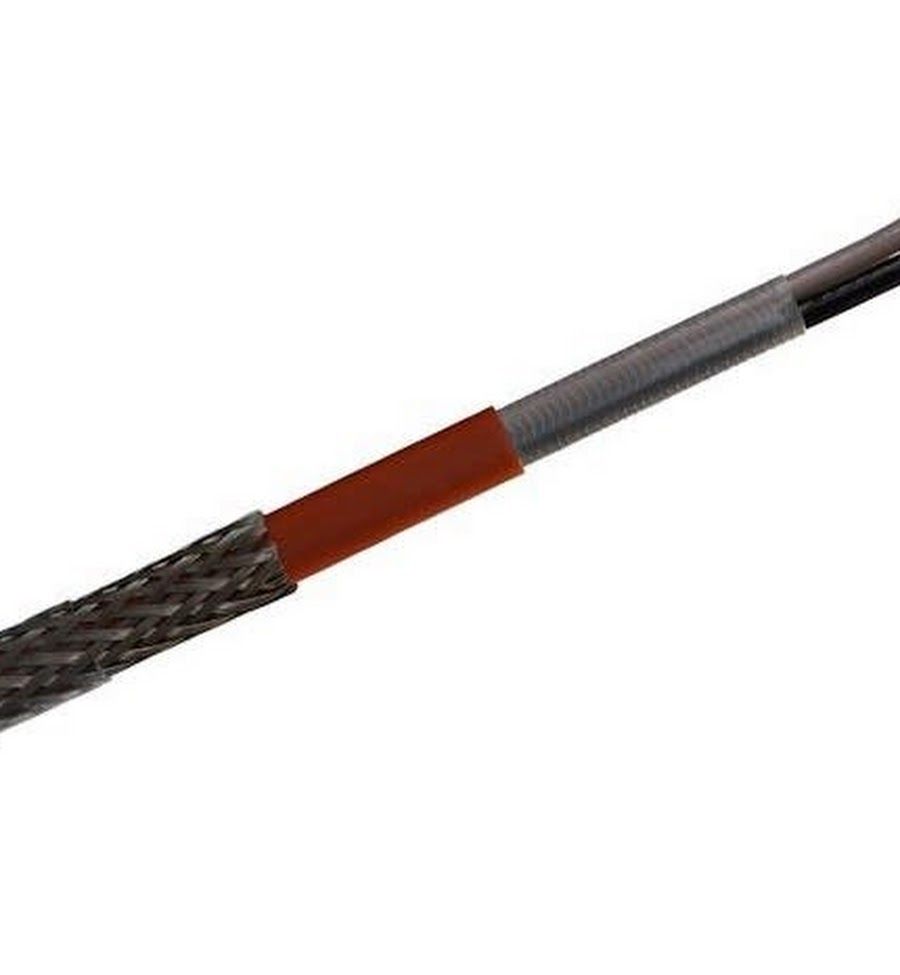

Start with 12, 14, 16 AWG bright copper bus wires which serve as excellent conductors, limiting voltage drop on long runs.  Encase each bus in an extruded FEP jacket.  Combine two bus wires with an FEP jacket.  Then wrap nichrome wire (heating element) around this jacket and apply a highly conductive material at the trimmed module (contact point) on alternating buses.  Extrude a color coded FEP insulating jacket over this heat element.  Optional metal braids are available – tinned copper is most commonly used to provide a grounding path as required by NEC;  nickel plated copper braids are available for more corrosive environments.  An additional FEP overjacket can be extruded over the braid for very corrosive situations.





APPROVALS

CSA Std. 130-03, CSA-USA

CSA File No.  201381 Bulk Heating Cables

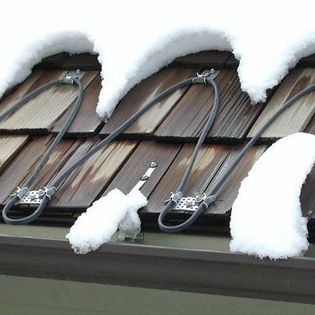

2E (roof deicing)

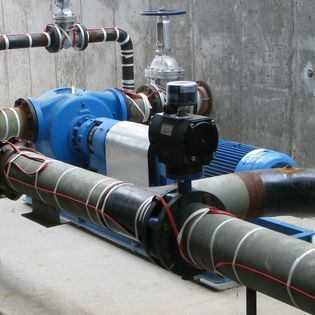

3B (pipe tracing-wet)

3C (pipe tracing-damp)

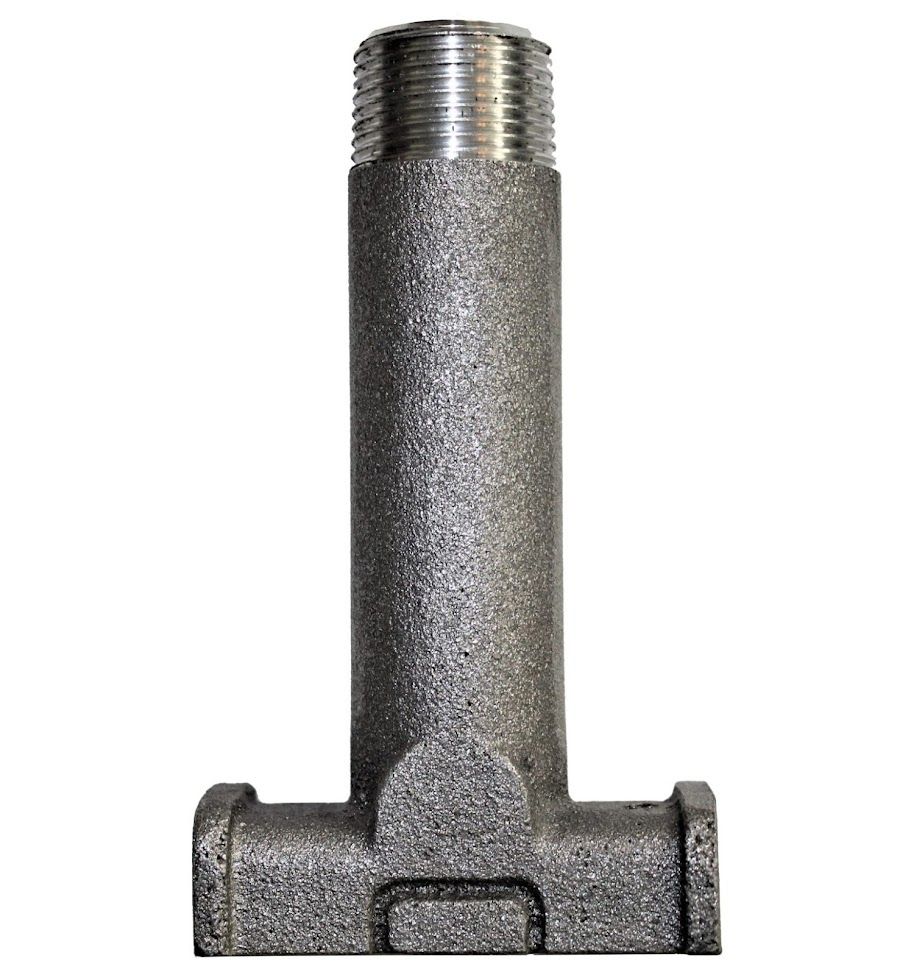

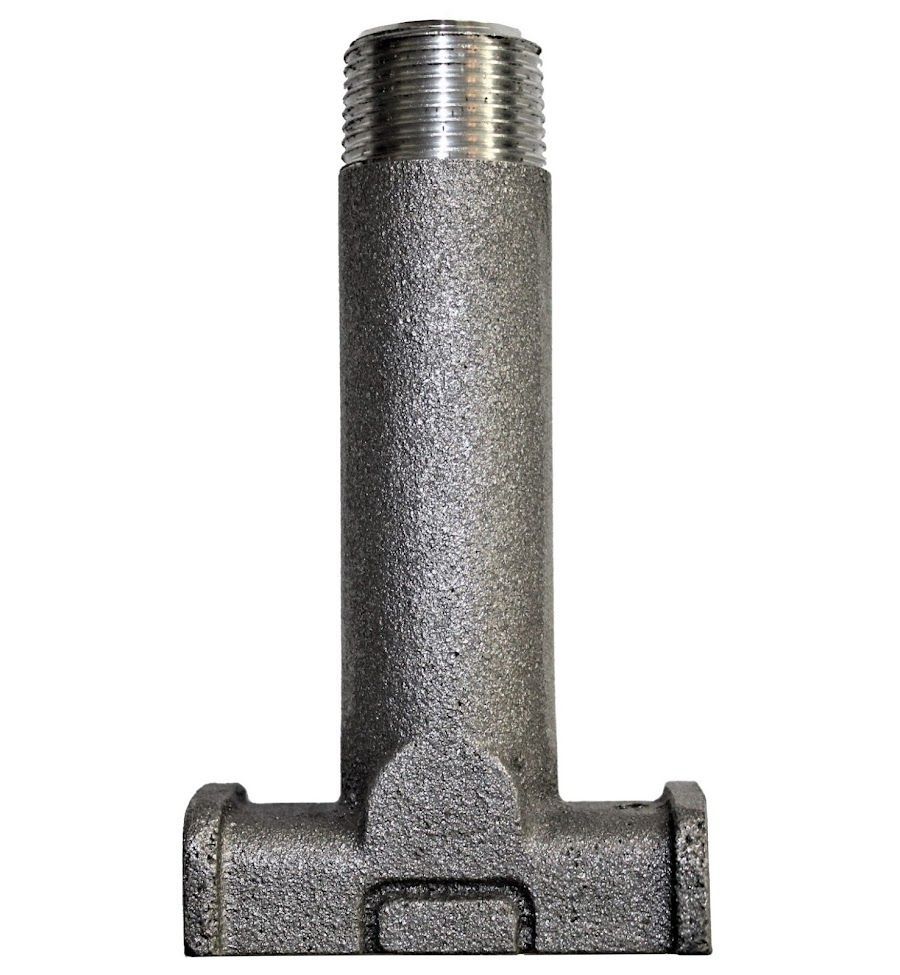

Power Termination Kit (PT-1)

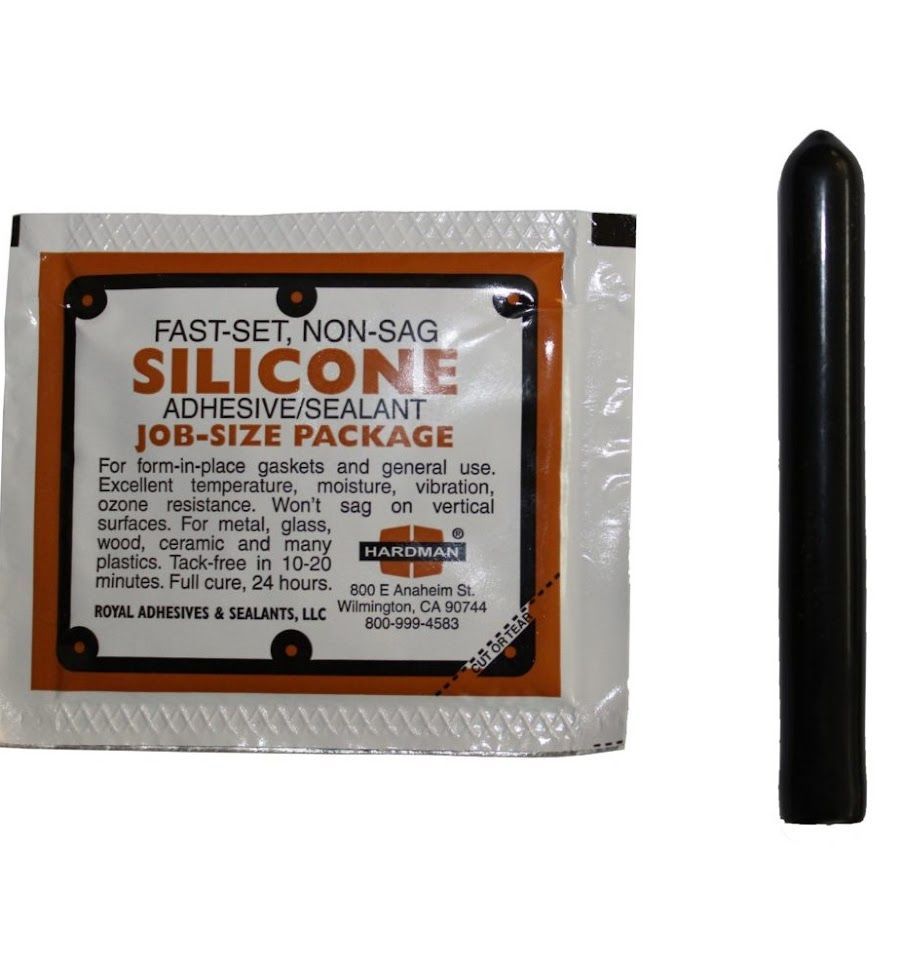

End Termination Kit (ETK-1)



 Cable outputs on 12 AWG of 3 to 15 watts per foot, from 120 volts to 277 volts can be assembled per  your specifications.  The 14 and 16 AWG can provide 3 to 8 watts per foot, from 120 to 277 volts.



 Define your cable  -  let PHOENIX provide your quality product!
